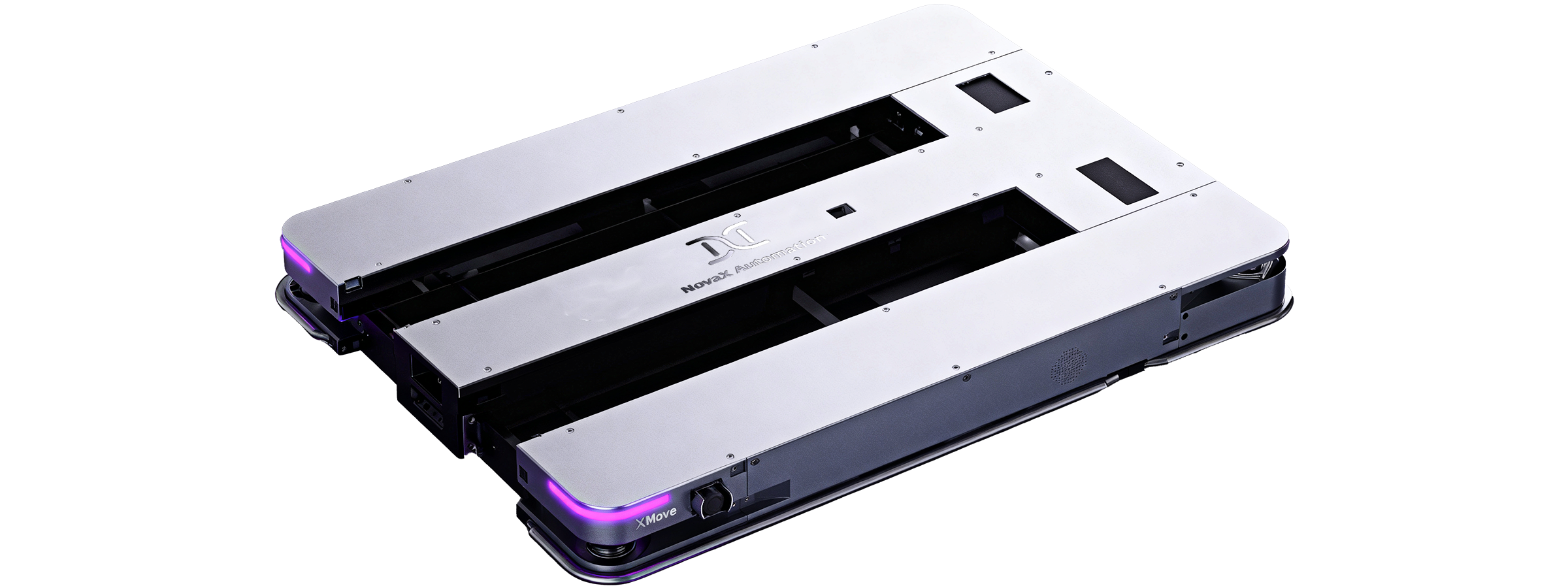

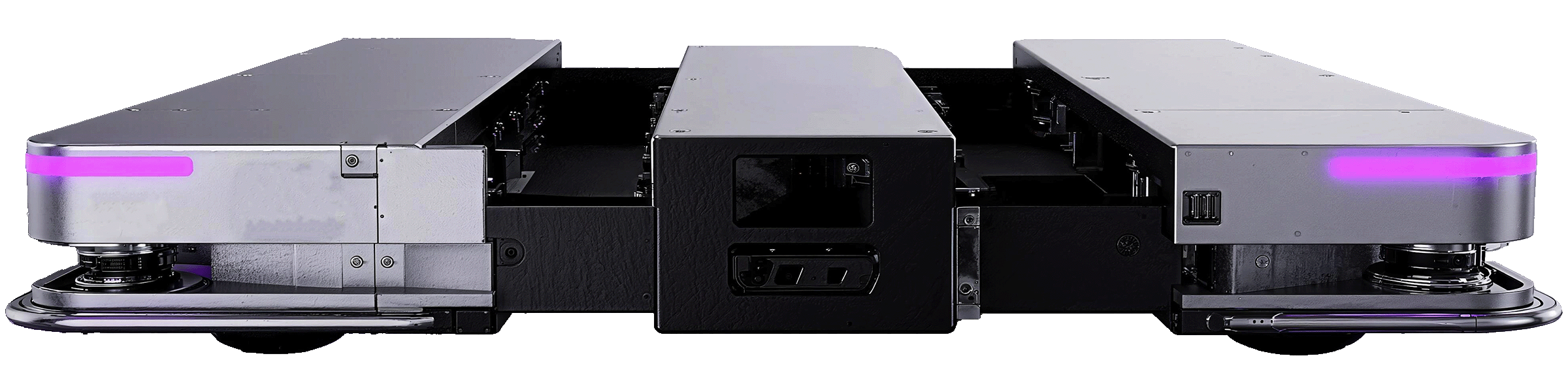

XMove M1
Next-Generation High-Speed Pallet Moving Robot
The SLAM-navigated XMove M1 Pallet Moving AMR offers a simple yet powerful one-step pallet handling solution, enabling fast, efficient, and reliable material movement across the entire logistics workflow — reaching speeds of up to 2 m/s with automatic pallet recognition and calibration.
1:5
Load ratio
1.8 m
Narrow aisles
360°
Laser and vision sensing
8 h
Battery EnduranceTechnical Innovations
Autonomous Operation
- No external assistance required, with enhanced body stability.
Ultimate Performance
- Industry-leading 1:5 load ratio and retrieval in 1.8 m narrow aisles.
Advanced Navigation
- SLAM + DM dual navigation with 360° laser and vision sensing for maximum safety.
High-Speed Efficiency
- Operates at up to 2 m/s with automatic pallet recognition and calibration.
Endurance & Reliability
- 1.5-hour charging supports 8 hours of continuous operation.
Strong Adaptability
- Ground adaptation of 40mm(Gap)/4°(7%)(Slope)/15mm(Step).
The Value of the Product
Unmanned Operations
Enables fully automated pallet movement, creating a seamless flow across inbound, outbound and intralogistics.
Higher Efficiency & Safety
Significantly boosts transport efficiency while reducing human errors and operational accidents.
Flexible Deployment
Easily adapts to different warehouse layouts, workflows, and industries.
Quick ROI
Delivers measurable cost savings and a fast return on investment through improved productivity and reduced labor dependence.
The Parameters of M1 Robots
| Type | Items | M1 – Standard | ||||||||
 |
||||||||||
| Basic Parameter | Size(mm)
Maximum Lifting Weight (kg) Self-Weight (kg) Fork Height (mm) Fork Extension Distance (mm) Maximum Lifting Height (mm) Turning Width Wireless communications |
1286×1102×170
1000 326 90 1400 ≤330 1800mm Support dual-band 2.4G/5G, IEEE802.11a/b/g/n |
||||||||
| Battery Specification |
|
|
||||||||
| Temperature | Operating Temperature | 0-45 ℃ | ||||||||
| Pallet Requirement | The Width of W1 and W2 (mm)*
Pallet Length L (mm) Pallet Opening Height H1 (mm) |
W1≤190， 700≤W2≤950
≤1400 800kg：95-130mm 1000kg：115-130mm |
||||||||
| Movement Capability |
|
|
*Pallet size definitions are provided in the product datasheet.
